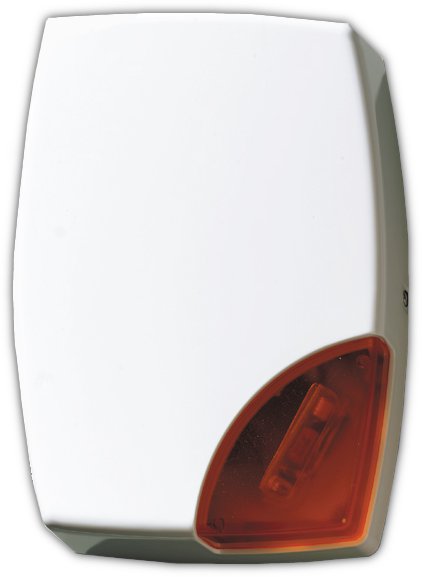

ARITECH AS 510
The AS 510 signalling unit is a first-class, modern device used to inform about an emergency situation by means of sound and light. It meets requirements of the majority of contemporary alarm systems. An alert is activated as a result of control by external devices that detect emergency situations (e.g. TERMISTAT microclimate controller, ETC-1-AL thermometer, CA-GSM-1 alarming unit, a detector of phase-loss and phase-sequence, etc.).
A solid construction and versatility of the assembly cause that this signalling unit performs well in the majority of alarm installations in livestock buildings.
A housing of the AS 510 signalling unit is made of high-impact polycarbonate of 3mm thickness that does not age under the influence of UV light.
This device is equipped with a surge arrester and system of voltage drop detection. As a standard it is equipped with a lead-acid battery (12V, 1,2Ah) in order to inform about loss of the external power supply.
Technical Data:Supply voltage | 10 ÷ 14,5 V DC (if a battery has been installed – then voltage of 14,4V is required – measured at terminals 3 and 4 of a signalling unit |
Standby current | 70 mA (with a battery), 26 mA (without a battery) |
Current in alarm state | 500 mA (with a lamp), lamp 110 mA |
Sound module | two piezoelectric converters |
Electronic system | completely hermetic |
Sound level | 114 dB with distance of 1 m or 85 dB with distance of 3m |
Signal frequency | 0,5 ÷ 3 kHz |
Time of signal duration | set: 3, 5, 10 or 20 min |
Flash frequency | 1 Hz |
Luminous flux | max. 100000 lm |
Operation temperature | -25 ÷ 55 °C |
Battery | lead-acid 12 V/1,2 Ah |
Operating status indicator | LED lamp |
Housing | polycarbonate (wall thickness: 3 mm) |
Housing dimensions (height x width x thickness) | 300 x 212 x 70 mm |
Weight | 1kg (without a battery) |
