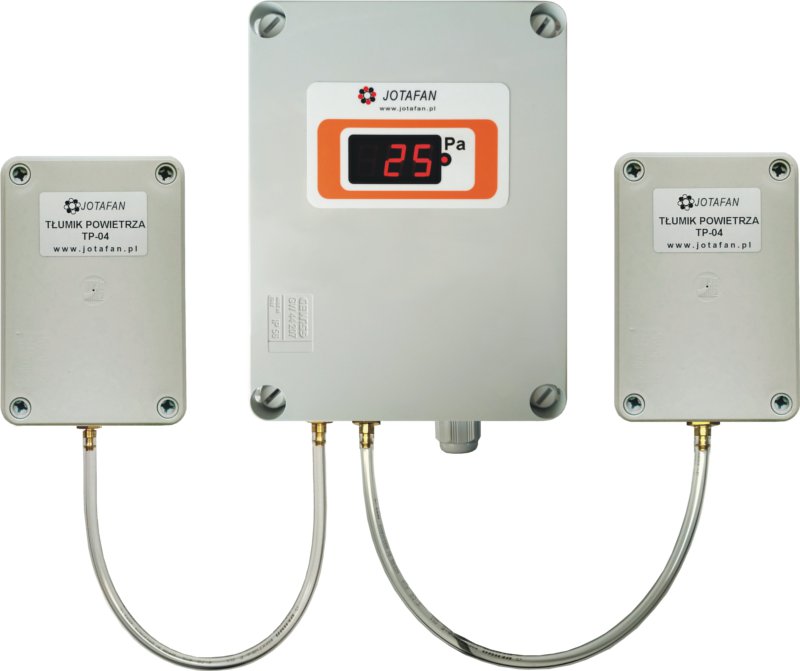

CCR-100 pressure sensor (differential)
The CCR-100 pressure sensor (differential) is designed for microclimate controllers in order to measure pressure difference (differential pressure) between the interior of the livestock building and its immediate vicinity from 0 to 100 Pa. The signal from the sensor can be used to control the opening of inlets in order to provide preset difference of pressure in the building and as a result to improve the process of exchange stale air in the optimum range.
The pressure sensor can interoperate with the VIRGO controller (connection by means of a RS-485 bus) or devices of other companies by 0..10V signal. The present value of differential pressure is shown on a LED display on the front panel of an enclosure. Two TP-04 air dampers are included in the set.
Technical Data:Supply voltage (measured at sensor’s terminals) | 12..24 V DC |
Power consumption | max. 10 mA ( Us = 12 V) |
Range of sensor’s measurement | 0 .. 100 Pa |
Accuracy of measurement | ±2 %; ±5 Pa |
Kind of an interface | RS-485 serial bus or analogue voltage signal 0..10 V |
Connection of air hoses | two hose fittings with external diameter of 4 mm |
Range of operating temperature | 0 ÷ 50 °C |
Ambient relative humidity | 0 ÷ 95 % |
Ingress protection class | IP55 |
Housing dimensions (height. x width x thickness with conduits) | 220 x 154 × 80 mm |
Sensor’s weight | 0,15 kg |
