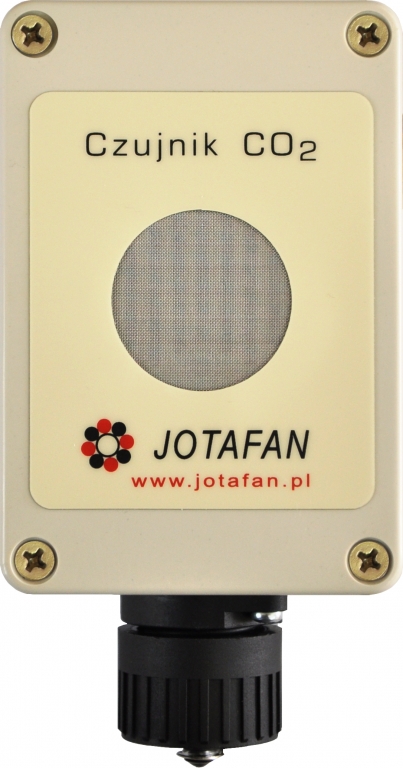

CO2-10k-010 sensor
The CO2-10k-010 sensor is used to measure carbon dioxide concentration with atmospheric pressure up to 10000ppm (1%) in buildings, especially in poultry houses, pig houses and mushroom growing facilities. The sensor is equipped with a hermetic plug that makes its disassembly easier when it is not used. During its production there was used a patent-protected sensor of long service time and accuracy of measurements.The sensor provides information about carbon dioxide concentration as an analogue 0..10V signal which value is proportional to CO2 concentration. The sensor can be used to cooperate with different devices that have a signal input of 0..10V. The sensor is installed in a plastic housing.
Technical Data:| Supply voltage (measured at sensor’s terminals) | 12..24 V DC |
| Power consumption | max. 15 mA (Us = 12V) |
| (60mA, Uz = 12V for about 350ms, every 15 s) | |
| Range of operating temperatures | 0 ÷ 50 °C |
| Ambient relative humidity | 0 ÷ 95 % RH |
| Range of CO2-10k sensor measurement | 400..10000 ppm |
| Accuracy of measurement | ±100 ppm +5% of measured value |
| Settling time | about 300 s (rapid change of CO2 concentration from about 600 ppm to about 5000 ppm) |
| Kind of an interface | Analogue voltage signal 0..10 V(active output signal- it supplies voltage to a terminal of 0V, maximum load current of OUT 0..10 output: 5Ma (flowing out) |
| Housing dimensions (width x height x depth without a connection socket) | 68 x 100 x 51 mm |
| Total height with a socket | ok. 130 mm |
| Connection cable | 4 x min. 0.34mm2 shielded |
