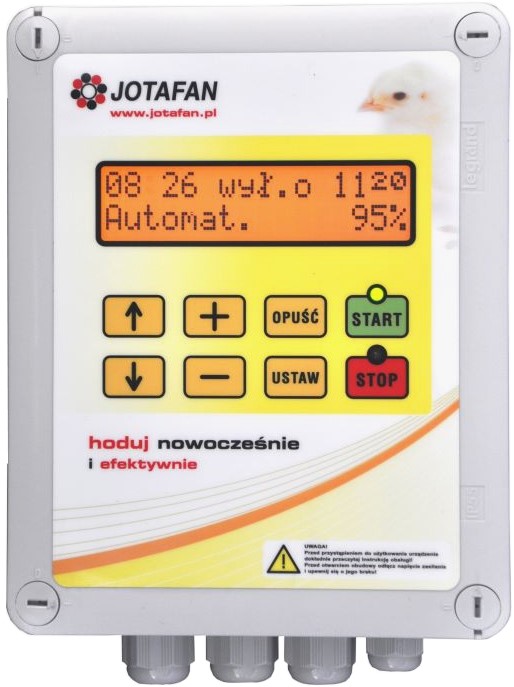

DUO-TIMER-010 is a programmable time controller designed for manual or automatic control of light intensity. Due to its specificity the regulator is designed to control light sources equipped with a signal 0..10V output, especially to dimmable fluorescent lamp housings JOTAFAN NEON 1X36W-IP65.

The regulator has got two control sections: 0..10V output to control light intensity (with the possibility of inversion work) and a section of ON/OFF type (to turn on and off the power supply of light sources). The regulator performs a programmable turning on/off  of lighting within 24h cycle with up to 9 breaks during the day. It also enables fluent change of light intensity with wide range of time change (from 5sec to 90min), simulating sunsets and sunrises.

The regulator’s clock is powered by an internal battery and it works even in case of power supply failure (up to about 20 days) and it calculates time of program realization according to the schedule.

This device  has got the possibility of five-point calibration of control characteristics so that the adjusted and actual value of light intensity was the best possible.
