PrintInstallation hermetic boxes ROZ-29 ROZ-39 ROZ-49
Boxes ROZ-29, ROZ-39 and ROZ-49 are designed for making signal connections of low voltage circuits such as circuits of temperature and humidity sensors, alarms, etc. in difficult environmental conditions (inside livestock buildings). The boxes produced by our company ensure comfortable and fast connections thanks to inbuilt screw terminals as well as ingress protection class of IP65. By means of these boxes it is possible to connect (split) cables of maximum 5 signal paths (or 4 signal paths + screen). It is also possible to make boxes with built-in surge protectors.

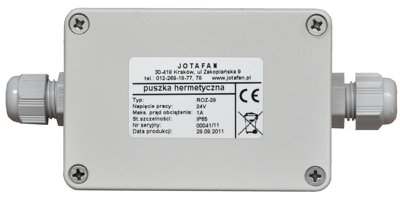

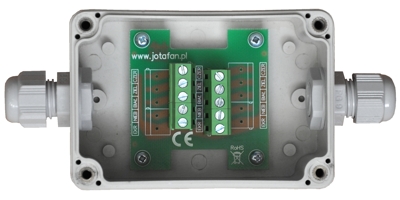

The ROZ-29 box is a hermetic, two-way box used to connect signal cables of up to 24V AC/DC, i.a. for temperature sensors, the WGJ-8 weighing system, etc. It is used to extend cables or to fix a damaged part of a cable
(photograph front, interior, figure of an electrical scheme)

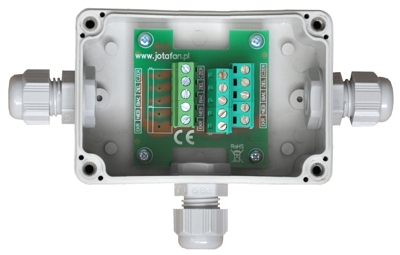

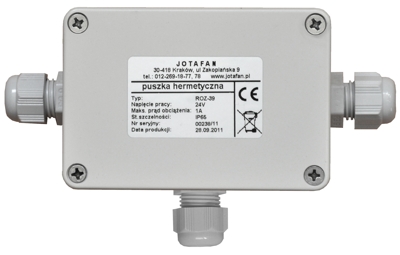

The ROZ-39 box is a hermetic, three-way box used to split a signal path (e.g. in order to connect an additional sensor or a weighing module)
(photograph front, interior, figure of an electric scheme).

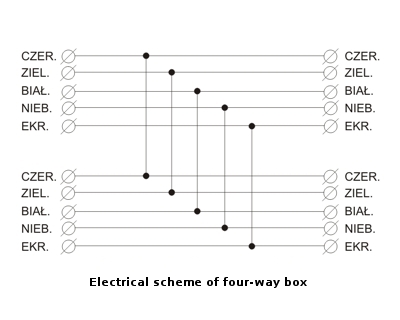

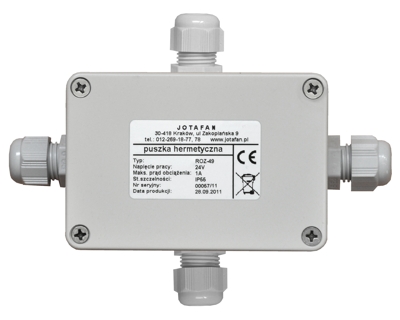

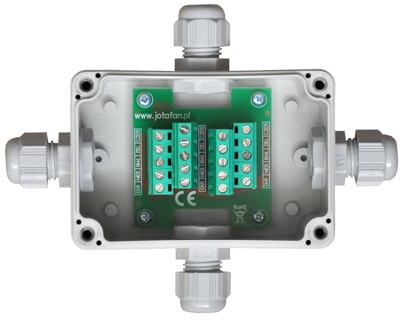

The ROZ-49 box is a hermetic, four-way box that enables to make branches from the main cable
(photograph front, interior, figure of an electric scheme).
| Housing dimensions (length x width x height without conduits) | 68 x 100 x 51mm |
| Housing dimensions (length x width x height with conduits) | 68 x 152 x 51mm |
| Housing dimensions (length x width x height with conduits) | 94 x 152 x 51mm |
| Housing dimensions (length x width x height with conduits) | 120 x 152 x 51mm |
