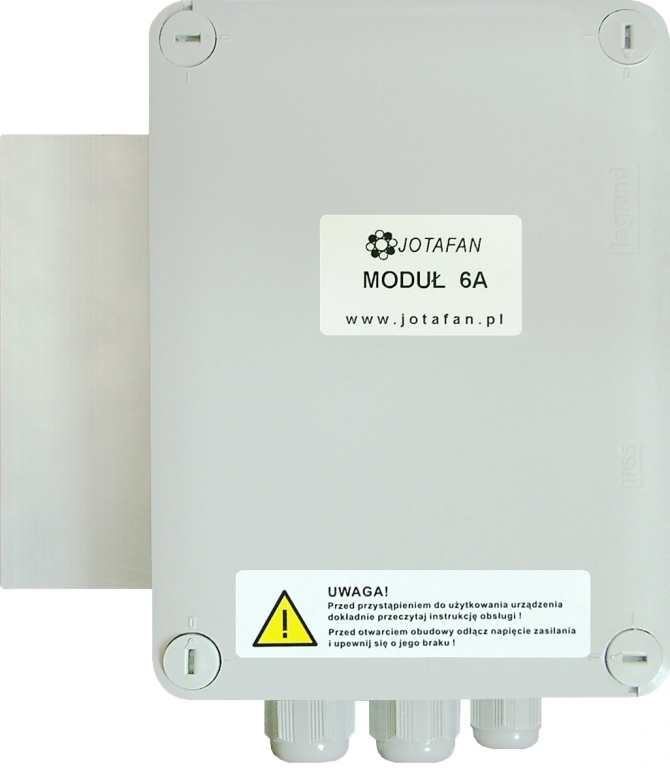

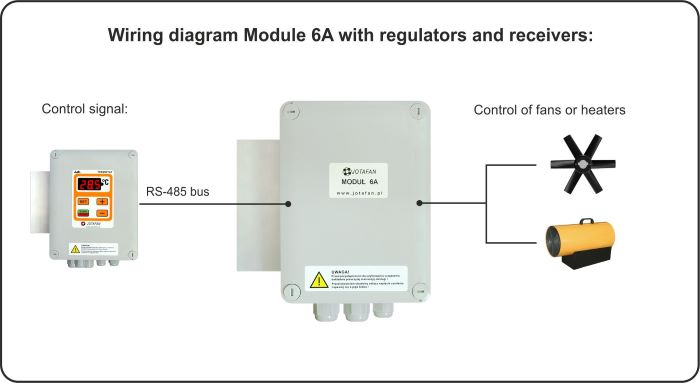

Module 6A is a device of extension the fluent section with direct power supply of load supplied with 230V, 50Hz (e.g. fans) with power consumption of up to 6A from 0 to 100% of power. This module can be controlled by an RS-485 bus. Thanks to galvanic separation between energy electronic circuits and input modules there is a possibility of interoperation of several modules supplied with different phases of voltage. This solution provides regular load of mains supply and partial ventilation in case of a power supply failure of one of phases.

This device is equipped with an anti-disturbances filter and surge protectors that are mounted directly on the printed circuit board. The module can be equipped with an alarm relay (option) activated in case of incorrect work of the device, power supply failure and other emergencies.

Module 6A enables the adjustment of different modes of operation, e.g. response to signal absence from the microclimate controller, etc. Configuration is made by means of built-in micro-switches.
