Module IN6-010
Module IN6-010

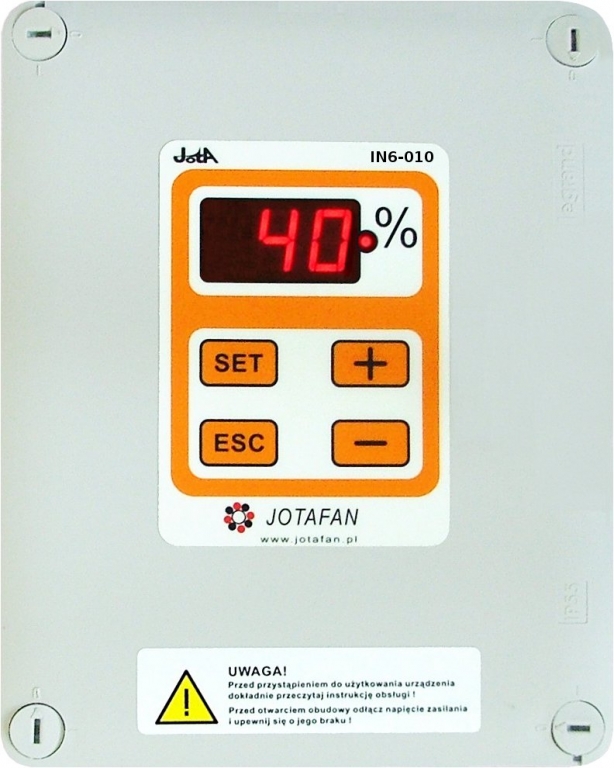

Module IN6-010 is a device for generating 0..10V signal on the basis of inputs status, supplied with voltage for ventilation sections of 'ON/OFF' of a microclimate controller. The module has 6 inputs galvanically separated (230V, 50Hz) for direct connection to the supply voltage of each section of the master controller and one 0..10V output to control the servomotors inlets.
The voltage output 0..10 V is issued in accordance with the set value for defined combination (sequence of turned on inputs). In case of the absence of defined combination or its zero value, voltage is generated as the sum of the set percentages for each section.
The device is mounted in a hermetic box IP-55, equipped with a LED display and keypad with four keys.
Technical Data:Supply voltage | 230 V, 50 Hz |
Class of anti-electric shock protection | II |
The fuse in the power circuit | NOT INCLUDED- an external circuit breaker of S type B-6 is required(B, In=6 A) |
Number of sections of input (230 V, 50 Hz, galvanically separated) | 6 |
Maximum permissible load current of 0..10V output | 50 mA |
Temperature of operation | 5 ÷ 40 °C |
Ambient relative humidity | 10 ÷ 80 % (non-condensing) |
Ingress protection class | IP 55 |
Housing dimensions (height x width x thickness) | 200 × 160 × 93 mm |
Device weight | 0,6 kg |
