Module Z-W

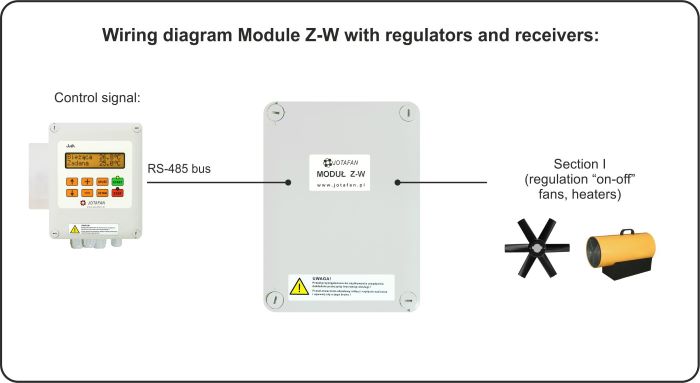

Module Z-W is a part of the JOTAFAN system that enables to increase the number of sections of microclimate controllers (sent by the TERMISTAT and COMBO controllers equipped with an RS-485 bus). The module has got one output section (a voltage output, an electronic switch) which kind of operation (ventilation/heating) and turning on/off point are configured in the master controller.
1. Controllers:
- an alarm signal (as in case of lack of communication with other external modules.
2. Module Z-W:
depending on the micro-switches settings:
- turning off the section,
- continuation of the last control,
- turning on the section.
In case of a power supply failure of Module 4ZW an alarm will also be activated by the master controller.
| Supply voltage of an output section | 230 V, 50 Hz |
| Supply voltage of a control section | 12..14 V DC |
| Class of anti-electric shock protection | I |
| Number of sections | 1 |
| Type of a section | ON/OFF (semiconductor electronic switch) |
| Maximum load current section | Imax: 0,5 A (230 V, 50 Hz), Imin: 150 mA (about 35 W) |
| The fuse in the power circuit | Ceramic 0,5A, 250V (IL≥1500 A) |
| Type of a serial bus | RS-485 |
| Temperature in the immediate vicinity | 0÷ 40 °C |
| Ambient relative humidity | 10 ÷ 90 % (non-condensing) |
| Ingress protection class | IP55 |
| Housing dimensions (height x width x thickness) | 175 × 130 × 81 mm |
| Weight | 0,33 kg |
