TERMISTAT-6-AL-LCD controller
TERMISTAT-6-AL-LCD is a microclimate controller that controls work of fans and heaters depending on temperature and time (function of periodical ventilation). It has got one control output with fluent power control (Section 1). It has got a large, easy to read LCD display that allows to view messages. Easy and functional buttons guarantee entering settings and monitoring parameters very comfortably.
The temperature is measured by means of digital temperature sensors.
The controller has got two relay alarm outputs and it indicates alarms e.g. when the set temperature thresholds are exceeded (temperature is too low or too high), in case of power supply failure, temperature measurement line damage etc.

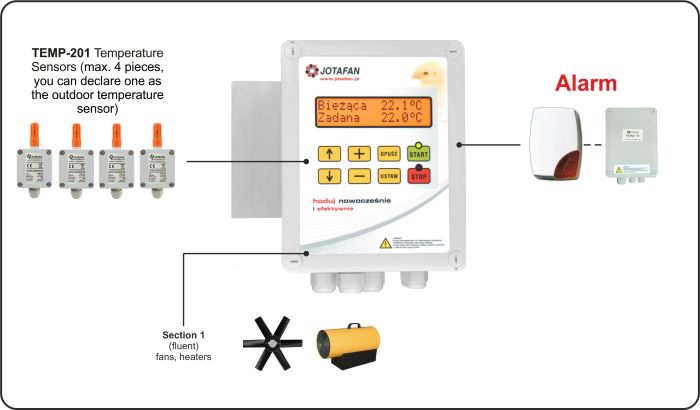

Wiring diagram of the TERMISTAT-6-AL-LCD controller with sensors and modules control
Characteristics:
- temperature measurement is made by means of digital sensors, the possibility of connection of up to 4 sensors TEMP-201, one sensor is included in the set,
- one built-in ‘fluent’ control output – it enables the multistage (100 stages) control of single-phase fans or infrared illuminators with current up to 6A,
- a relay alarm output (NO, NC and COM contacts), 24V, 200mA,
- large, easy to read display LCD with messages in Polish.
Functions:
- choice of the mode of outputs work (ventilation/heating),
- change of the stage of section operation and thermal alarms by means of one parameter: preset temperature,
- defining the minimum and maximum control of the fluent section,
- a 'forbidden range' – elimination of the part of the fluent section control range that is energy-intensive and adverse for work of fans,
- periodical ventilation: setting the cycles and levels of ventilation, bandwidth of ventilation (shortening the time of ventilation together with lowering below preset temperature in a building),
- alarm function i.a. when temperature thresholds are exceeded (temperature is too low or too high), when the control process has been stopped, in case of power supply failure, temperature measurement line damage etc.,
- the possibility of declaring the sensor of outside temperature (i.a. in order to correct an alarm threshold or when temperature is too high).
Supply voltage | 230 V, 50 Hz |
Class of anti-electric shock protection | I |
Type of control of Section 1 | phase |
Maximum continuous load current of Section 1 | 6 A |
Minimum load current of Section 1 | 150 mA (about 35 W) |
The fuse in the power circuit | NOT INCLUDED- an external circuit breaker of S type B-6 is required(B, In=6 A) |
Relay alarm output | Umax: 24 V DC, Imax: 200 mA, Rin: 8,2 Ω |
Range of setting temperature | –5 ÷ +50 °C, resolution 0,1 °C |
Range of temperature measurement | –40 ÷ +70 °C, resolution 0,1 °C |
Range of temperature operation of sensor TEMP-201 | –25 ÷ +70 °C |
Temperature in immediate vicinity of the controller | 0 ÷ 40 °C |
Ambient relative humidity | 10 ÷ 90 % (non-condensing) |
Ingress protection class | IP55 |
Housing dimensions (height x width x thickness together with a conduits and radiator) | 220 x 202 x 93 mm |
Device weight (without a temperature sensor) | 1,4 kg |
Type of a cooperative temperature sensor | TEMP-201 |
