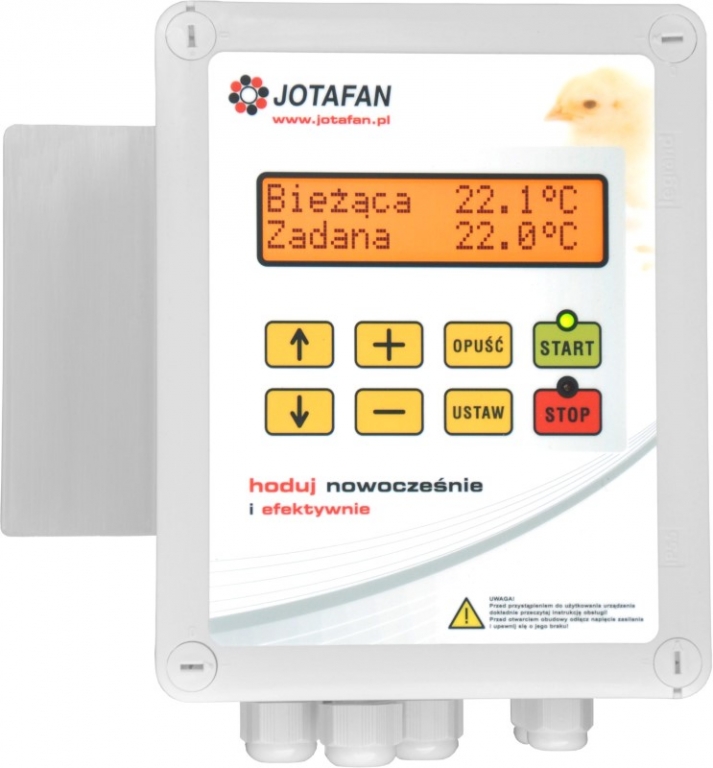

TERMISTAT-6-AL-485-LCD is a microclimate controller that controls work of fans and heaters depending on temperature and time (function of periodical ventilation). It has got one control output with fluent power control (Section 1). For extension of the system and its functionality the controller is equipped with a RS-485 digital bus for interoperation with extension modules of the JOTAFAN system.





It enables additional connection of:

• up to 8 extension modules of fluent section (MODULE  6A, MODULE 6A-010),

• up to 4 controllers of servomotors  inlets (INLET-010),

• extension of the number of ‘ON/OFF’ sections- up to 8 independently programmed sections (Module 4ZW)

• RHT-01-GN temperature and humidity sensor,

• Module 010-2S to generate analogue voltage 0..10 V for fluent control of devices (power inverters, servomotors inlets, etc.).

The controller has got two relay alarm outputs and it indicates alarms e.g. when the set temperature thresholds are exceeded (temperature is too low or too high), in case of power supply failure, temperature measurement line damage etc.

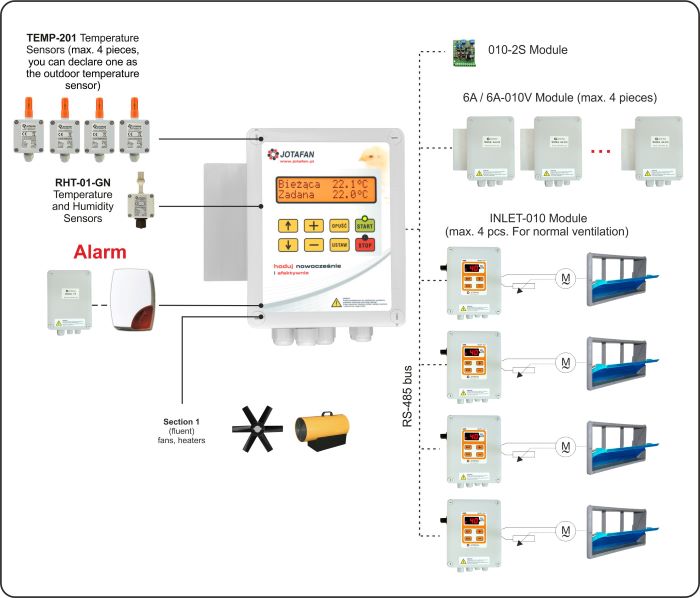

Wiring diagram of the TERMISTAT-6-AL-485-LCD controller with sensors and modules control:

Characteristics:

• temperature measurement is made by means of digital sensors, the possibility of connection of up to 4 sensors TEMP-201, one sensor is included in the set,

• temperature and ambient relative humidity measurement (RHT-01-GN), and control of  ventilation depending on humidity (dehumidification function)

• one built-in fluent control output that enables multistage (100 stages) control of single-phase fans or infrared illuminators with current up to 6A,

• a RS-485 module for communication with other JOTAFAN devices (extension modules of ‘fluent’ section, controllers of servomotors inlets, etc.),

• a relay alarm output (NO, NC and COM contacts), 24V, 200mA,

• large, easy to read display LCD with messages in Polish.

Functions:

• choice of the mode of outputs operation (ventilation/heating),

• change of the stage of section operation and thermal alarms by means of one parameter: preset temperature,

• defining the minimum and maximum control of the fluent section,

• a 'forbidden range' – elimination of the part of the fluent section control range that is energy-intensive and adverse for work of fans,

• periodical ventilation: setting the cycles and levels of ventilation, bandwidth of ventilation (shortening the time of ventilation together with lowering below preset temperature in a building),

• alarm function i.a. when temperature thresholds are exceeded (temperature is too low or too high), when the control process has been stopped, in case of power supply failure, temperature measurement line damage etc.

• diversity of characteristics of inlets operation in terms of the fluent section in order to generate differential pressure,

• the possibility of declaring the sensor of outside temperature (i.a. in order to correct an alarm threshold or when temperature is too high).

Technical Data:

Supply voltage	230 V, 50 Hz
Class of anti-electric shock protection	I
Type of control of Section 1	phase
Maximum continuous load current of Section 1	6 A
Minimum load current of Section 1	150 mA (about 35 W)
The fuse in the power circuit	NOT INCLUDED- an external circuit breaker of S type (B-6, In=6 A) is required
A relay alarm output	Umax: 24 V DC, Imax: 200 mA, Rin: 8,2 Ω
Type of a serial bus	RS-485
Range of setting temperature	–5 ÷ +50 °C, with resolution 0,1 °C
Range of temperature measurement	–40 ÷ +70 °C, resolution 0,1 °C
Range of temperature operation of sensor TEMP-201	–25 ÷ +70 °C
Temperature in immediate vicinity of the controller	0 ÷ 40 °C
Ambient relative humidity	10 ÷ 90 % (non-condensing)
Ingress protection class	IP55
Housing dimensions (height x width x thickness together with a radiator)	220 x 202 x 93 mm
Device weight (without a temperature sensor)	1,4 kg
Type of a cooperative temperature sensor	TEMP-201
