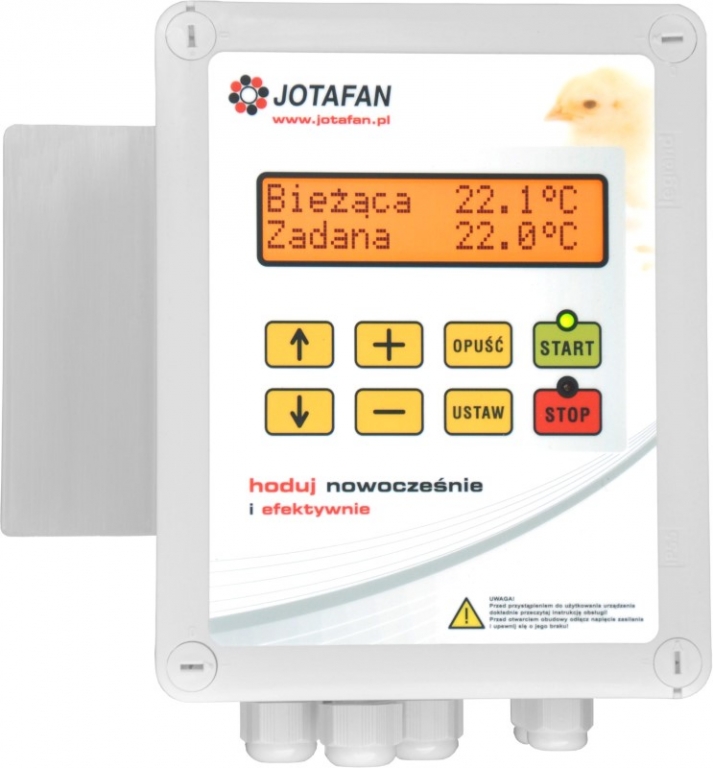

TERMISTAT-6-2S-LCD is a microclimate controller that controls work of fans and heaters depending on temperature and time (function of periodical ventilation). It has got two control outputs: one is electronic with fluent power control (Section 1), the second one is a relay output, voltage-free of ON/OFF type (Section 2). It has got a large, easy to read LCD display that allows to view messages. Easy and functional buttons guarantee entering settings and monitoring parameters very comfortably.

The controller has got two relay alarm outputs and it indicates alarms e.g. when the set temperature thresholds are exceeded (temperature is too low or too high), in case of power supply failure, temperature measurement line damage etc.

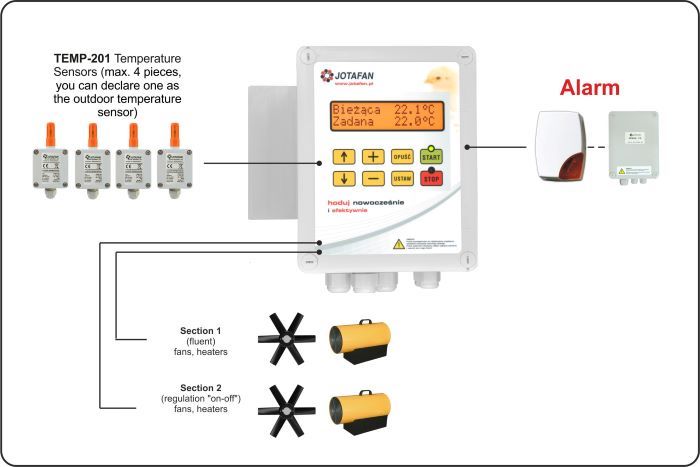

Wiring diagram of the TERMISTAT-6-2S-LCD controller with sensors and modules control:



Characteristics:

• temperature measurement is made by means of digital sensors, the possibility of connection of up to 4 sensors TEMP-201, one sensor is included in the set,

• two built-in control sections (each can work as ventilating or heating):

-Section 1, ‘fluent’ – it enables the multistage (100 stages) control of single-phase fans or infrared illuminators with current up to 6A,

-Section 2, ‘ON/OFF’ type- with a relay output, voltage-free (NO and NC contacts of a relay, load current capacity up to 3A),

• relay alarm output (NO, NC and COM contacts), 24V, 200mA,

• large, easy to read display LCD with messages in Polish.

Functions:

• choice of the mode of outputs operation (ventilation/heating),

• change of the stage of section operation and thermal alarms by means of one parameter: preset temperature,

• defining the minimum and maximum control of the fluent section,

• a 'forbidden range' – elimination of the part of the fluent section control range that is energy-intensive and adverse for work of fans,

• periodical ventilation: setting the cycles and levels of ventilation, bandwidth of ventilation (shortening the time of ventilation together with lowering below preset temperature in a building),

• alarm function i.a. when temperature thresholds are exceeded (temperature is too low or too high), when the control process has been stopped, in case of power supply failure, temperature measurement line damage etc.,

• diversity of characteristics of inlets operation in terms of the fluent section in order to generate differential pressure,

• the possibility of declaring the sensor of external temperature (i.a. in order to correct an alarm threshold or when temperature is too high).

Technical Data:

Supply voltage	230 V, 50 Hz
Class of anti-electric shock protection	I
Type of control of Section 1	phase
The maximum continuous load current of Section 1	6 A
The minimum continuous load current of Section 1	150 mA (about 35 W)
Type and kind of a control output of Section 2	Two-position: ON/OFF, (relay contacts, NO, C)
Load current of relay contacts of Section 2	Imax: 3A (when 230V, 50Hz), Imin: 10mA
The fuse in the power circuit	NOT INCLUDED- an external circuit breaker of S type (B-6, In=6 A) is required
The fuse in the output circuit of Section 2	Ceramic 3,15 A, 250V (IL≥1500 A)
Relay alarm output	Umax: 24V DC, Imax: 200mA, Rin: 8,2Ω
Range of setting temperature	–5 ÷ +50°C, resolution 0,1°C
Range of temperature measurement	–40 ÷ +70 °C, resolution 0,1 °C
Range of temperature operation of sensor TEMP-201	–25 ÷ +70 °C
Temperature in immediate vicinity of the controller	0 ÷ 40 °C
Ambient relative humidity	10 ÷ 90% (non-condensing)
Ingress protection class	IP 55
Housing dimensions (height x width x thickness together with a radiator)	220 x 202 x 93 mm
Device weight (without a temperature sensor)	1,4 kg
Type of a cooperative temperature sensor	TEMP-201
